TECHNICS EPS-310MC T4P MC CARTRIDGE BORON CANTILEVER SOLID ELLIPTICAL STYLUS.

TECHNICS EPS-310MC T4P MC CARTRIDGE BORON CANTILEVER SOLID ELLIPTICAL STYLUS.

Condition: Used

Description

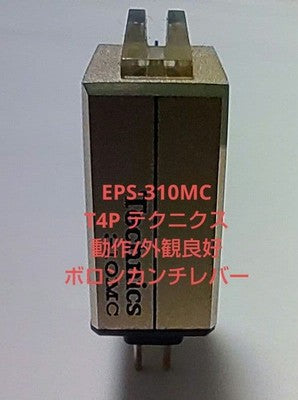

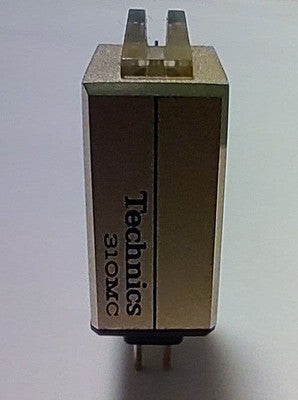

This is the Technics EPS-310MC MC type cartridge, designed for the T4P (P-Mount/Plug-in) standard.

This cartridge was instrumental in popularizing the P-Mount standard worldwide, originally introduced by Technics with the legendary SL-10 turntable. It was a standard accessory for the SL-10 and was acclaimed globally for its exceptional sound quality.

Featuring a pure boron pipe cantilever, it delivers a delicate yet wide-range sound. The stylus is a solid elliptical diamond needle.

As it was developed specifically for the SL-10, its compatibility with the turntable is outstanding.

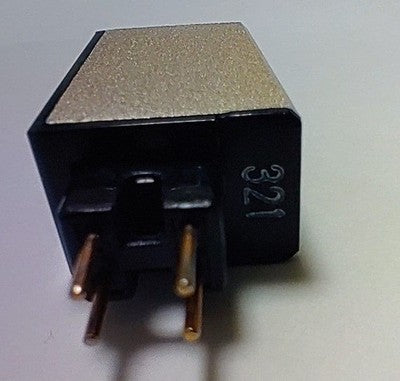

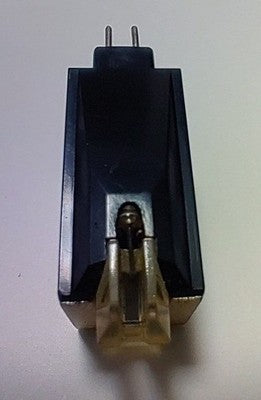

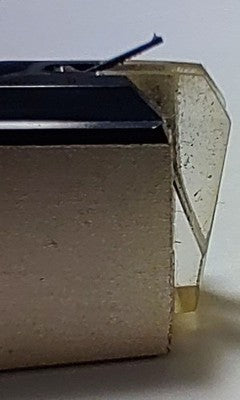

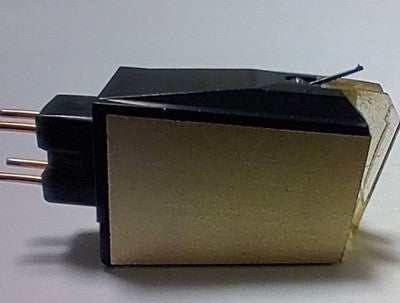

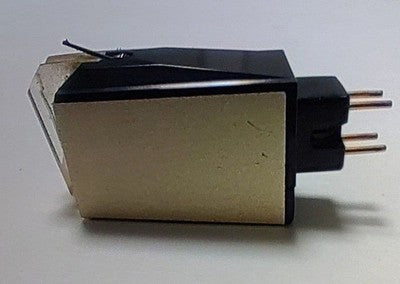

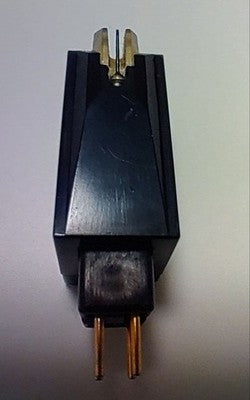

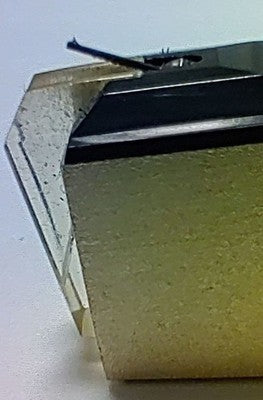

This is a working unit confirmed to have good output from both channels, with no degradation of the damper. The stylus tip is in good condition with plenty of life remaining, and the cantilever shows no damage, as depicted in the photos.

・Type: Plug-in Connector MC type Stereo Cartridge

・System: Coreless Twin-Ring Coil System

・Cantilever: Pure Boron Pipe Cantilever

・Damper: TTDD (Technics Temperature Defense Damper)

・Frequency Response: 10Hz - 60kHz (10Hz - 10kHz +/-0.5dB)

・Output Voltage: 0.2mV (1kHz, 5cm/s, zero to peak, horizontal speed) / 0.28mV (1kHz, 5cm/sec, zero to peak, 45deg speed)

・Channel Separation: 25dB+ (1kHz) / 20dB+ (10kHz)

・Channel Balance: Within 1dB (1kHz)

・DC Resistance: 30Ω

・Impedance: 30Ω (pure resistive)

・Compliance: 12x10-6cm/dyne (100Hz)

・Tracking Angle: 20°

・Tracking Force: 1.25 +/-0.25g

・Effective Mass of Vibrating System: 0.23mg

・Stylus Tip: 0.2x0.7mil elliptical diamond needle

・Weight: 6g

Only the items shown in the photos are included. Please examine the images carefully for details on the condition.

Item Details

• Brand: Technics
• Color: Orange
• Compatible Brand: For Technics
• Compatible Model: For Technics SJ-10
• Country of Origin: Japan
• Customized: Unknown
• Features: Boron Cantilever
• MPN: EPS-310MC
• Type: Cartridge

Ships from Japan. Actual availability is confirmed after your order. Items may also be listed or sourced through other marketplaces. If an item becomes unavailable, your order will be promptly cancelled and refunded.
