HIOKI 3351 POWER LINE MONITOR W/ 3X 9661 & 1X 9675 CLAMP SENSORS USED

HIOKI 3351 POWER LINE MONITOR W/ 3X 9661 & 1X 9675 CLAMP SENSORS USED

Condition: Used

Accessories: for comprehensive power analysis

Description

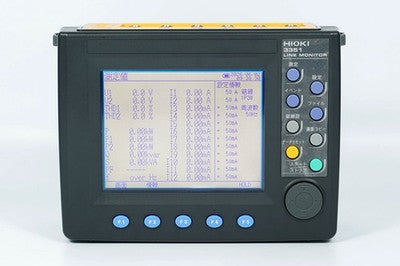

This listing is for a used HIOKI 3351 Power Line Monitor, complete with essential accessories for comprehensive power analysis.

・Product Name: Power Line Monitor

・Manufacturer: HIOKI Electric

・Model Numbers: 3351 + 9661 + 9675

・Main Specifications (3351):

・Measurement Lines: Single-phase 2-wire, Single-phase 3-wire, Three-phase 3-wire (50/60Hz)

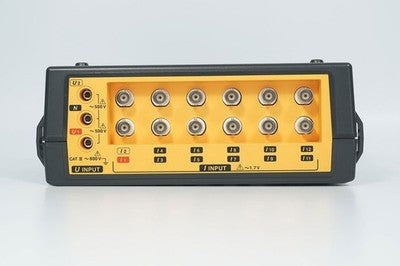

・Channel Count (Max): Voltage 2ch (1 circuit), Current 12ch

・Measured Items:

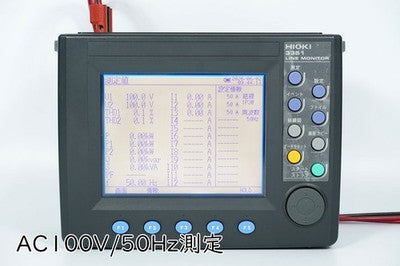

・Voltage: AC 200V (Effective measurement range 90V - 490V)

・Current-1 (Load Current): 500.0m to 5.000kA (depends on clamp sensor)

・Current-2 (Leakage Current): 50.00m/100.0m/500.0m/1.000A (using 9675, 9657-10)

・Power: (1 circuit)

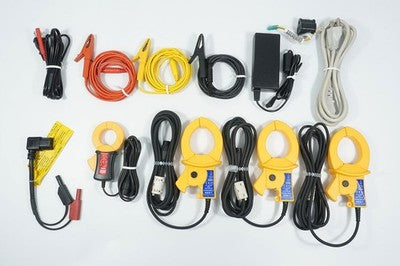

・Accessories Included:

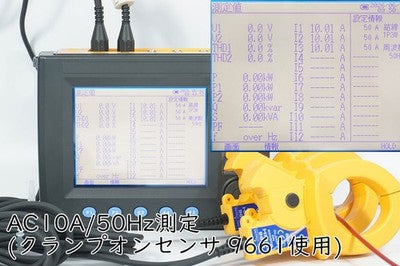

・3x 9661 Clamp-on Sensors (Rated Current: AC500A, Measurable Conductor Diameter: Up to φ46mm)

・1x 9675 Clamp-on Leak Sensor (Rated Primary Current: AC 10A, Measurable Conductor Diameter: Up to φ30mm)

・9438-04 Voltage Cords (Red, Black, Yellow - 1 each)

・9722 Power Supply Cord

・9448 Outlet Input Cord

・3P AC Power Cord

・9418-15 AC Adapter

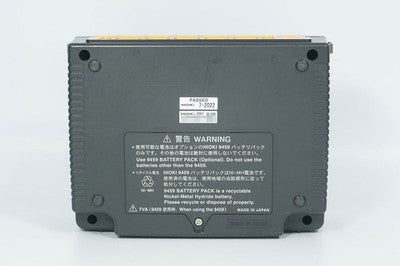

・9459 Battery Pack (Installed in the unit)

・9720-01 Portable Case

・Manuals (Japanese): 3351 Quick Start, 3351 Detailed, 9745 Line Monitor Viewer, 9661 Clamp-on Sensor, 9675 Clamp-on Leak Sensor, 9722 Connection Cord

・3351 CD-R (Detailed Instruction Manual, RS-232C Manual)

・9745 Line Monitor Viewer (CD-ROM)

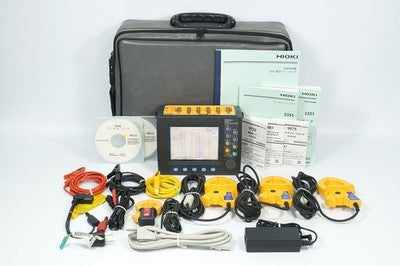

All items shown in the photos are included. This unit has been tested and is in working condition.

Item Details

• Brand: HIOKI
• Type: Power Line Monitor
• Model: HIOKI 3351
• Country of Origin: Japan
• Customized: Unknown
